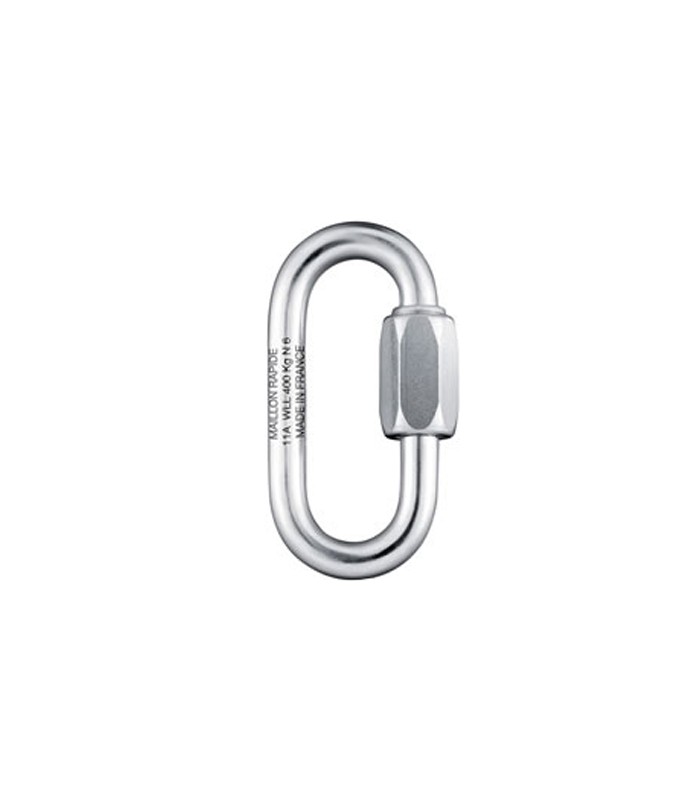

Oval Inox 7 mm quick link

A quick link for anchoring your rescue parachute

Application: For rescue parachute anchoring

Self-certified with Working Load

CU (WLL) : 900 kg permanent without deformation

CR Rupture : 4500 Kg

CU (WLL) = Working Load

CU (WLL) x 5 = Rupture Load

Material

• Stainless steel 316 L - Standard X2 Cr Ni - Mo 17-12-2 (1.4404)
• Type 18/12 molybdenum steel with very low carbon content, protects against the risk of intergranular corrosion.
• Can be used in environments where type 18.10 steels are used, with the exception of those involving nitric acid.
• Molybdenum content equal to 2/2.5 favors use in areas broader than those assigned to type 18.10 steels, notably in the presence of sulfuric acid and chloride in marine environments.

General aspect to be monitored

quick link should be carefully checked at least once a year for corrosion, deformation and wear, and for proper operation. If in doubt, replace the quick link.
Tips

• The quick link can be closed by screwing the nut on manually to guarantee optimum safety, or by tightening it with a wrench to the recommended tightening torque to transform it into a permanent connector.Please note: no threads should be visible.
• Payload engraved on each quick link.
• All quick link connectors must be inspected visually at regular intervals. In case of doubt, it is the user's responsibility to replace it.
