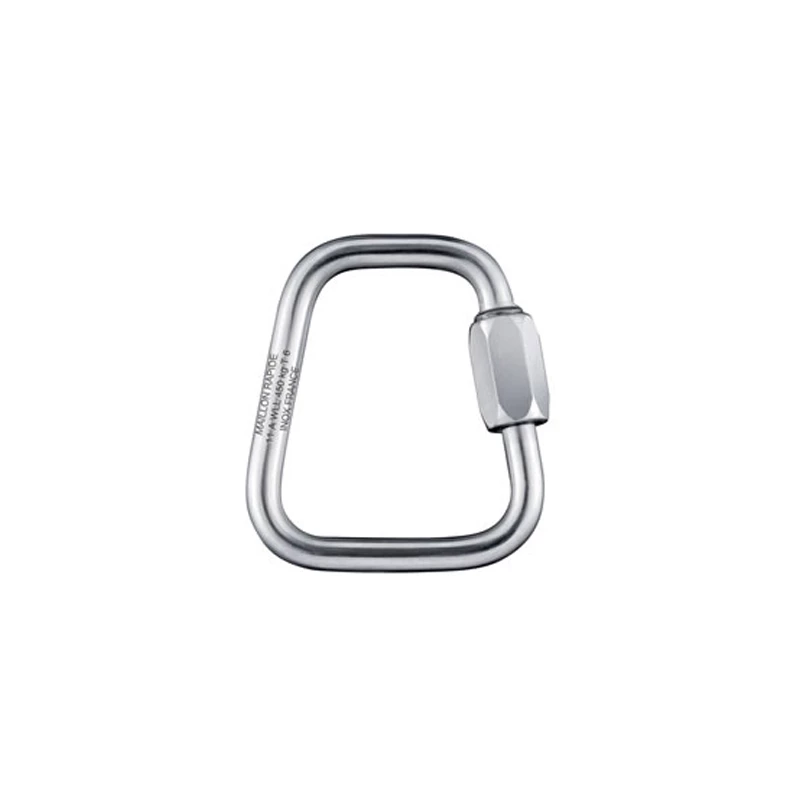

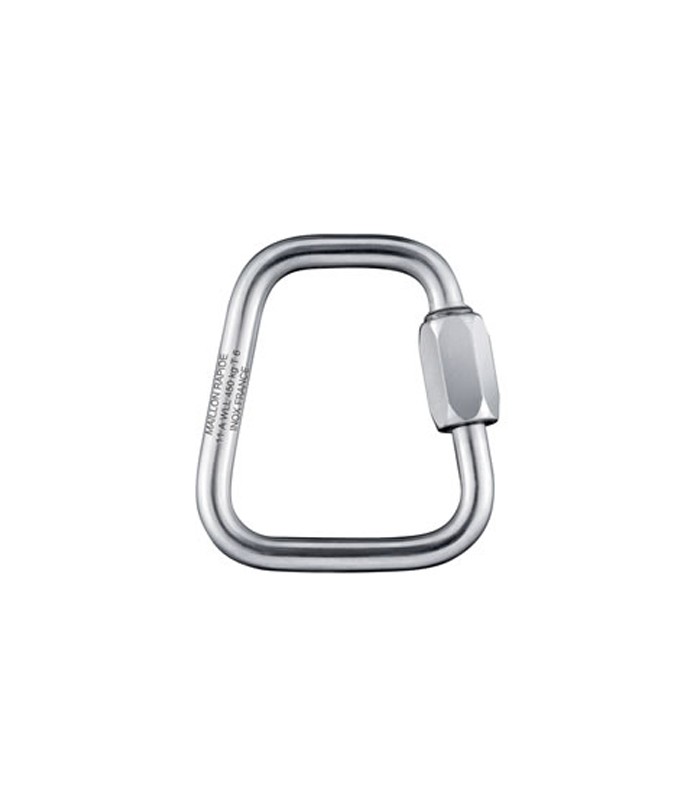

Trapèze 6mm stainless steel quick link

A durable stainless steel quick link

Maillon rapide Trapèze Inox 6mm

Use: to attach the 2 Y or H rescue straps to the shoulder straps or to attach the canopy to the harness

• Diameter: 6 mm
• Height: 57 mm
• Weight: 38 g
• CU (WLL): 450 kg permanent without deformation

• CR Rupture: 2250 Kg

  CU (WLL) = Working Load

  CU (WLL) x 5 = Rupture Load


  Material

  - Stainless steel 316 L - Standard X2 Cr Ni - Mo 17-12-2 (1.4404)
  - Type 18/12 molybdenum steel with very low carbon content, protects against the risk of intergranular corrosion.
  - Can be used in environments where type 18.10 steels, with the exception of environments where nitric acid is present.
  - Molybdenum content equal to 2/2.5 favors use in areas broader than those assigned to type 18.10 steels, particularly in the presence of sulfuric acid and chloride in marine environments


  General aspect to be monitored

  quick link should be carefully checked at least once a year for corrosion, deformation and wear, and for proper operation. Replace any quick link that has been used to stop a violent fall. Proceed in the same way in case of uncertainty after checking the quick link


  Technical specifications





  Advice

  - The quick link can be closed by screwing the nut on manually to guarantee optimum safety, or by tightening the nut with a wrench to the recommended torque. The quick link becomes a permanent connector.Caution: no thread should be visible.
  - Payload engraved on each quick link.
  - All quick link must be inspected regularly. In case of doubt, it is the user's responsibility to replace it.
